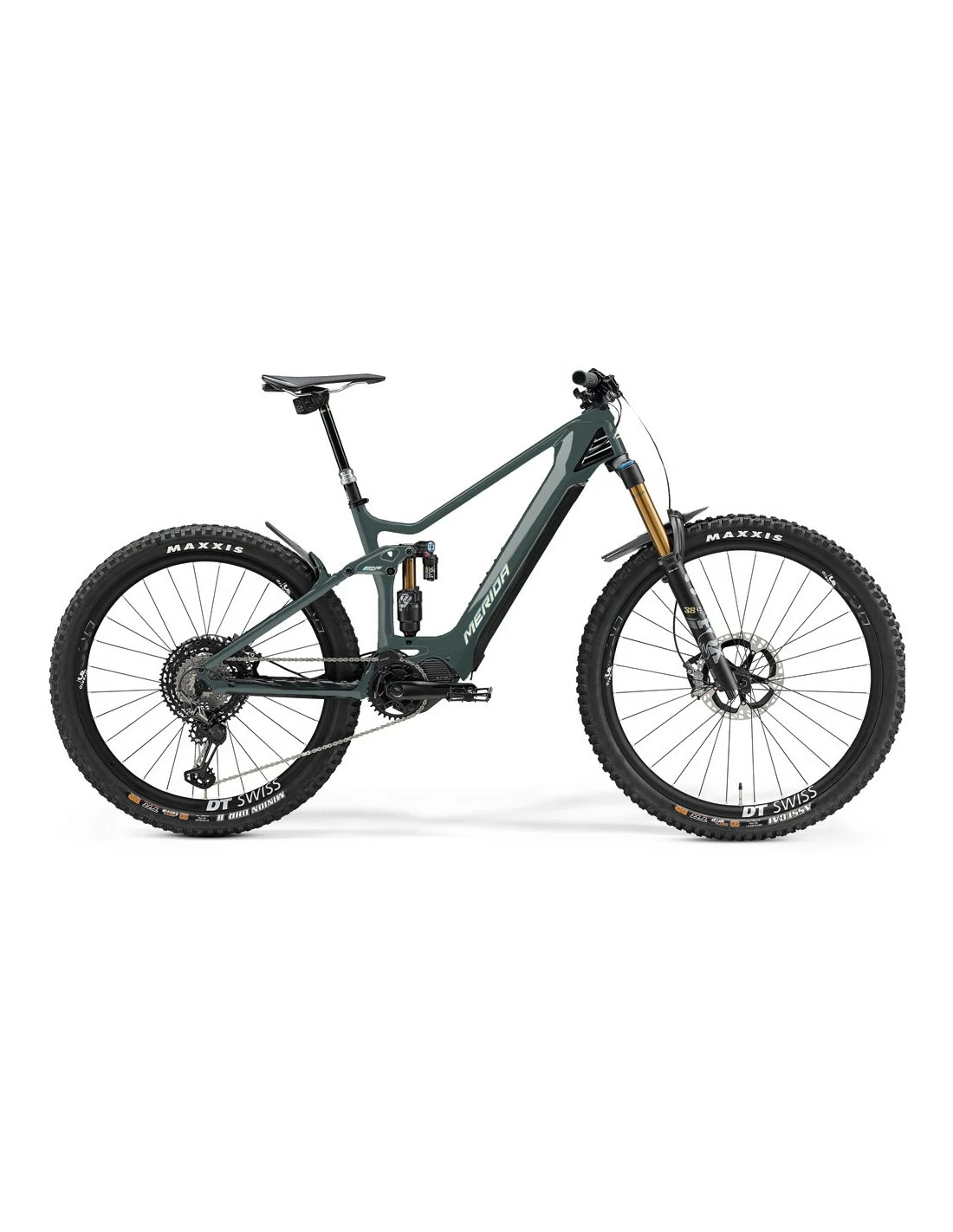

GUNMETAL GREY

Rahmen	eONE-SIXTY CFA II; MAT carbon; 150 STR; 27.5×2.8″ max. WHS; 148×12 AST; intube; max. 630 Wh
Größe	XS-S-M-L-XL
Dämpfer	FOX Factory Float X2; platform
Gabel	FOX 38 Factory eMTB+; Air; 160 STR; Tapered; 51mm fork offset; 29×2.6″ max WHS
Bremse Vorne	Shimano XTR; 4 piston
Bremse Hinten	Shimano XTR; 4 piston
rotor-F	Shimano RT-MT900; 203 mm
rotor-R	Shimano RT-EM910; 203 mm
Kurbelsatz	Shimano CRE80-12-B; 34 ATC
Crank/Size	Shimano FCEM900; 165 mm all sizes; hollow
Schaltwerk	Shimano XTR Shadow+
Kassette	Shimano M9100; 10-51 ATC; 12 GER
Pedal	VP VPE-527
Felge	DT Swiss Spline HXC1501 spline 30 boost; 110×15 WHF; 148×12 WHR; 30 IWR; Centerlock; microspline; MAT carbon; Tubeless ready (tubeless tape and valves included)
Sattel	MERIDA EXPERT CC; V-mount
Sattelstütze	SP REVERB AXS; 30.9 DSP; 0 SSB; XS 125 SPT – S/M 150 SPT – L/XL 170 SPT
Shifter-F	EC AXS ROCKSHOX LH 1BUTTON DIS
Shifter-R	Shimano XTR M9100
Reifen vorne	Maxxis Assegai; 29×2.5 “; fold; TR EXO+ 3C MaxxGrip
Reifen hinten	Maxxis DHR II; 27.5×2.6 “; fold; 3C EXO+ TR
protector-1	Chiain protector, CSP-098 TPR
protector-2	CB-240 Cable guide
Motor	Shimano EP8; 85Nm
BATTERY	Shimano E8036 630Wh / Shimano E8035 504Wh for XS only
DISPLAY	Shimano SC-EM800
